H07VR (U500V) 10 Bleu
Réf. Nexans 56111150602
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 10 mm²
- Minimum electrical resistance at 20°C: 1,83 Ohm/km
H07VR (U500V) 10 Jaune
Réf. Nexans 56111150603
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 10 mm²
- Minimum electrical resistance at 20°C: 1,83 Ohm/km
H07VR (U500V) 10 Noir
Réf. Nexans 56111150604
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 10 mm²
- Minimum electrical resistance at 20°C: 1,83 Ohm/km
H07VR (U500V) 10 Rouge
Réf. Nexans 56111150601
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 10 mm²
- Minimum electrical resistance at 20°C: 1,83 Ohm/km
H07VR (U500V) 10 V/J
Réf. Nexans 56111150621
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 10 mm²
- Minimum electrical resistance at 20°C: 1,83 Ohm/km
H07VR (U500V) 16 Bleu
Réf. Nexans 56111152302
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 16 mm²
- Minimum electrical resistance at 20°C: 1,15 Ohm/km
H07VR (U500V) 16 Jaune
Réf. Nexans 56111152303
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 16 mm²
- Minimum electrical resistance at 20°C: 1,15 Ohm/km
H07VR (U500V) 16 Noir
Réf. Nexans 56111152304
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 16 mm²
- Minimum electrical resistance at 20°C: 1,15 Ohm/km
H07VR (U500V) 16 Rouge
Réf. Nexans 56111152301
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 16 mm²
- Minimum electrical resistance at 20°C: 1,15 Ohm/km
H07VR (U500V) 16 V/J
Réf. Nexans 56111152321
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 16 mm²
- Minimum electrical resistance at 20°C: 1,15 Ohm/km
H07VR (U500V) 6,0 Bleu
Réf. Nexans 56111147302
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 6 mm²
- Minimum electrical resistance at 20°C: 3,08 Ohm/km
H07VR (U500V) 6,0 Jaune
Réf. Nexans 56111147303
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 6 mm²
- Minimum electrical resistance at 20°C: 3,08 Ohm/km
H07VR (U500V) 6,0 Noir
Réf. Nexans 56111147304
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 6 mm²
- Minimum electrical resistance at 20°C: 3,08 Ohm/km
H07VR (U500V) 6,0 Rouge
Réf. Nexans 56111147301
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 6 mm²
- Minimum electrical resistance at 20°C: 3,08 Ohm/km
H07VR (U500V) 6,0 V/J
Réf. Nexans 56111147321
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 6 mm²
- Minimum electrical resistance at 20°C: 3,08 Ohm/km
H07VU (U500V) 1,5 Bleu
Réf. Nexans 56111111002
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 1,5 mm²
- Minimum electrical resistance at 20°C: 12,1 Ohm/km
H07VU (U500V) 1,5 Jaune
Réf. Nexans 56111111003
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 1,5 mm²
- Minimum electrical resistance at 20°C: 12,1 Ohm/km
H07VU (U500V) 1,5 Noir
Réf. Nexans 56111111004
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 1,5 mm²
- Minimum electrical resistance at 20°C: 12,1 Ohm/km
H07VU (U500V) 1,5 Rouge
Réf. Nexans 56111111001
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 1,5 mm²
- Minimum electrical resistance at 20°C: 12,1 Ohm/km
H07VU (U500V) 1,5 V/J
Réf. Nexans 56111111021
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 1,5 mm²
- Minimum electrical resistance at 20°C: 12,1 Ohm/km
H07VU (U500V) 2,5 Bleu
Réf. Nexans 56111113702
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 2,5 mm²
- Minimum electrical resistance at 20°C: 7,41 Ohm/km
H07VU (U500V) 2,5 Jaune
Réf. Nexans 56111113703
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 2,5 mm²
- Minimum electrical resistance at 20°C: 7,41 Ohm/km
H07VU (U500V) 2,5 Noir
Réf. Nexans 56111113704
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 2,5 mm²
- Minimum electrical resistance at 20°C: 7,41 Ohm/km
H07VU (U500V) 2,5 Rouge
Réf. Nexans 56111113701
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 2,5 mm²
- Minimum electrical resistance at 20°C: 7,41 Ohm/km
H07VU (U500V) 2,5 V/J
Réf. Nexans 56111113721
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 2,5 mm²
- Minimum electrical resistance at 20°C: 7,41 Ohm/km
H07VU (U500V) 4,0 Bleu
Réf. Nexans 56111115502
- Packaging: Coil (m)
- Sheath colour: Blue
- Conductor cross-section: 4 mm²
- Minimum electrical resistance at 20°C: 4,61 Ohm/km
H07VU (U500V) 4,0 Jaune
Réf. Nexans 56111115503
- Packaging: Coil (m)
- Sheath colour: Yellow
- Conductor cross-section: 4 mm²
- Minimum electrical resistance at 20°C: 4,61 Ohm/km
H07VU (U500V) 4,0 Noir
Réf. Nexans 56111115504
- Packaging: Coil (m)
- Sheath colour: Black
- Conductor cross-section: 4 mm²
- Minimum electrical resistance at 20°C: 4,61 Ohm/km
H07VU (U500V) 4,0 Rouge
Réf. Nexans 56111115501
- Packaging: Coil (m)
- Sheath colour: Red
- Conductor cross-section: 4 mm²
- Minimum electrical resistance at 20°C: 4,61 Ohm/km
H07VU (U500V) 4,0 V/J
Réf. Nexans 56111115521
- Packaging: Coil (m)
- Sheath colour: Green / Yellow
- Conductor cross-section: 4 mm²
- Minimum electrical resistance at 20°C: 4,61 Ohm/km
Description
Description
Normes
-
Normes internationalesIEC 60227-1
-
Normes nationalesNF C32-201/3
Application

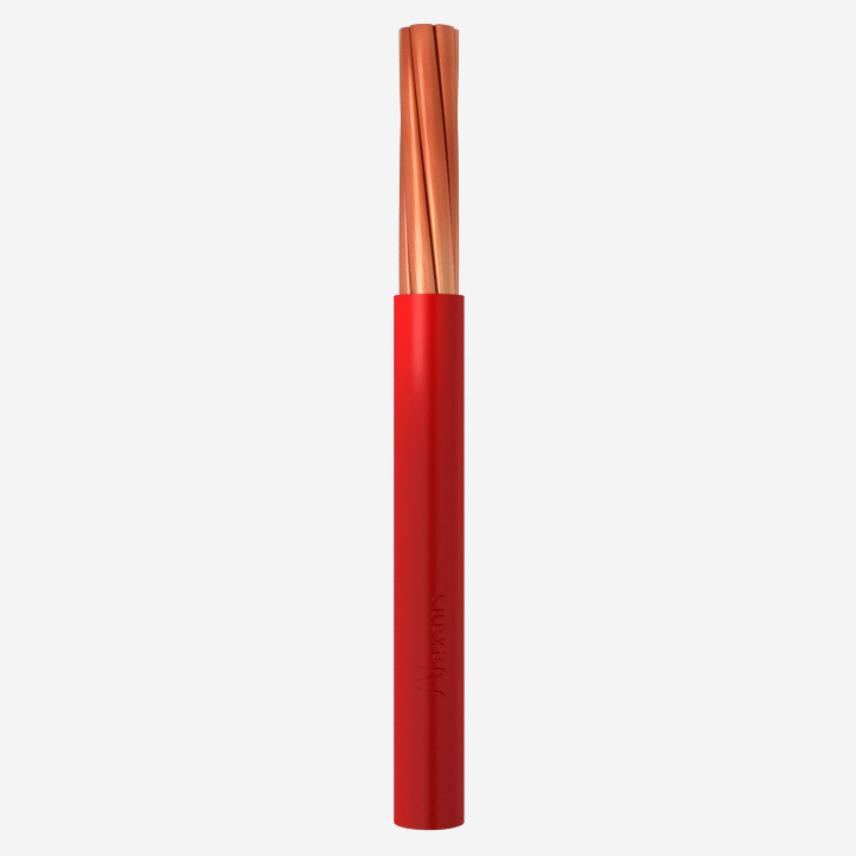

H07V-R conductors are used for fixed protected installations in, or on, lighting or controlgear... They are more designed for panels stranding
Installation
Open air, in conduit, in cable trunking, in cable ducting.
Caractéristiques
Caractéristiques
Construction characteristics
Construction characteristics
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Dimensional characteristics
Dimensional characteristics
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Low
Cable flexibility
Rigid
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Good
Chemical resistance
Accidental
Water proof
Accidental
Bending factor when laying
4 (xD)
Length
100 m
Packaging
Coil
